QF-LJ-L-800-20-2

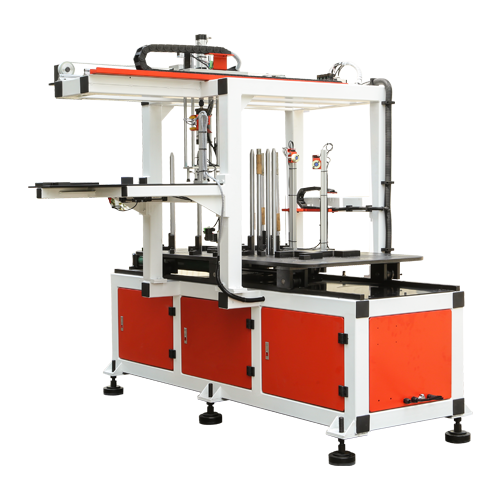

Double-station destacker
- The platform adopts a hydraulic lifting system, which has strong material carrying capacity, stability and reliabiity.
- Ithas split and double detection and automatic corection functions, ensuring high-speed, smooth, stable operation of the automatedstamping line and the safety of the mold.
- Adopting PLC automatic control system, precise controlof the rise amplitude of the silo and the output of auxiliary fuelinjection androlling oil system, uniform coverage, effectively saving costs.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：robot.qinfeng-gp.com
| Model | QF-LJ-L-800-20-2 | |
| Parameter | Index | |
| Station number (unit) | 2 | |
| Maximum sheet size (Round/square shape) (mm) | 800×800 | |
| Minimum sheet size (Round/square shape) (mm) | 250×120 | |
| Grip weight (kg) | 20 | |
| Maximum load of silo (kg) | 2800 | |
| Feeding telescopic stroke (mm) | 1200 | |
| Maximum height of stockpile (mm) | 300~500 | |
| Positioning precision (mm) | ±0.2 | |
| Power supply | 3×380VAC±10%, 50/60Hz±2% | |
| Installed Power (kw) | 2 | |
| Working temperature (℃) | 0~50 | |
| Relative humidity of working environment (%) | ≤80 (No condensation) | |
| Working air requirement (Mpa[Kgf/cm²]) | 0.5~0.7 | |
| Maximum SPM (with Rolling oil type) (pcs/min) | 12 (10) | |
| Splitting system | Iron sheet | Magnetic splitter |
| Aluminum, Copper, Steel sheet | Blowing, scraping, shaking | |
| Jacking system | Hydraulic system | |
| Body size (L×W×H) (mm) | 2300×2600×2300 | |
| Robot weight (kg) | 1200 | |
| Communication (Optional) | RS232/485, CANopen, Ethernet/IP | |
