QF-L-S-1500/2000-20/40-1

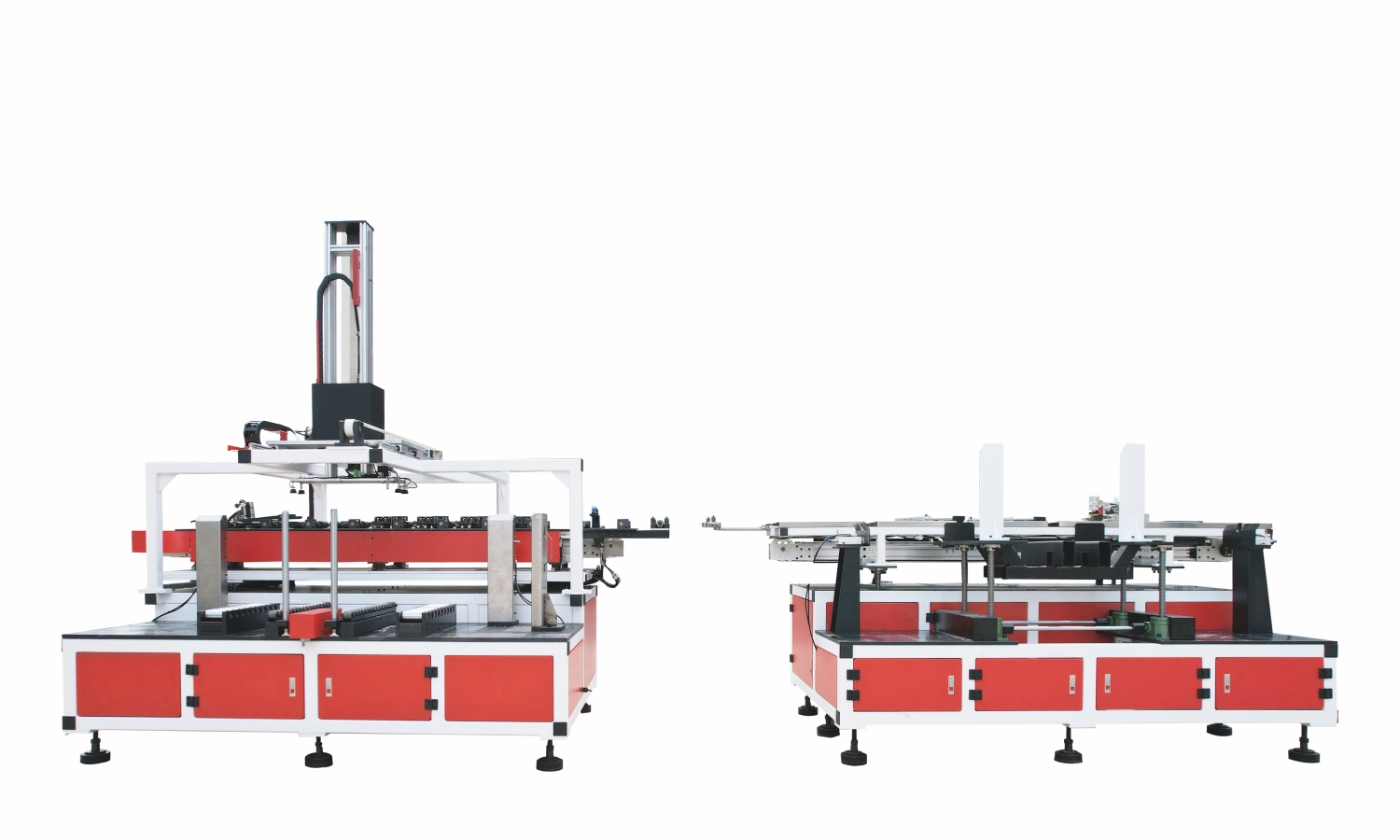

Strip feeder
- Using servo motors combined wth precision planetary reducers, the feeding is high-speed and stable, and the positioning is fast and accurate.
- Adopting a calibration table automatic tracking system, the front and rear grippers can simultaneously release and retrieve materials improving the feeding efficiency of the system.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：robot.qinfeng-gp.com
| Model | QF-L-S-1500-20-1 | QF-L-S-2000-40-1 | |
| Parameter | Index | Index | |
| Station number (unit) | 1 | 1 | |
| Maximum sheet size (Round/square shape) (mm) | 1500×350 | 2000×500 | |
| Minimum sheet size (Round/square shape) (mm) | 600×80 | 800×100 | |
| Grip weight (kg) | 20 | 40 | |
| Maximum load of silo (kg) | 2200 | 4100 | |
| Feeding telescopic stroke (mm) | 1800 | 2250 | |
| Maximum height of stockpile (mm) | 300~500 | 300~500 | |
| Positioning precision (mm) | ±0.2 | ±0.2 | |
| Minimum step (mm) | ±0.1 | ±0.1 | |
| Power supply | 220VAC±10%, 50/60Hz±2% | 220VAC±10%, 50/60Hz±2% | |
| Installed Power (kw) | 2.5 | 2.5 | |
| Working temperature (℃) | 0~50 | 0~50 | |
| Relative humidity of working environment (%) | ≤80 (No condensation) | ≤80 (No condensation) | |
| Working air requirement (Mpa[Kgf/cm²]) | 0.5~0.7 | 0.5~0.7 | |
| Maximum SPM (pcs/min) | 24 | 24 | |
| Splitting system | Iron sheet | Magnetic splitter | Magnetic splitter |
| Aluminum, Copper, Steel sheet | Blowing, scraping, shaking | Blowing, scraping, shaking | |
| Jacking system | Pneumatic system | Pneumatic system | |
| Body size (L×W×H) (mm) | 2700×1800×2700 (Feeding side) 2700×1800×1200 (Receiving side) |
3100×1700×2500 (Feeding side) 3100×1800×1200 (Receiving side) |
|
| Robot weight (kg) | 2000 | 2500 | |
| Communication (Optional) | RS232/485, CANopen, Ethernet/IP | RS232/485, CANopen, Ethernet/IP | |
