QF-GJ-H-DL-2400-55-4/5

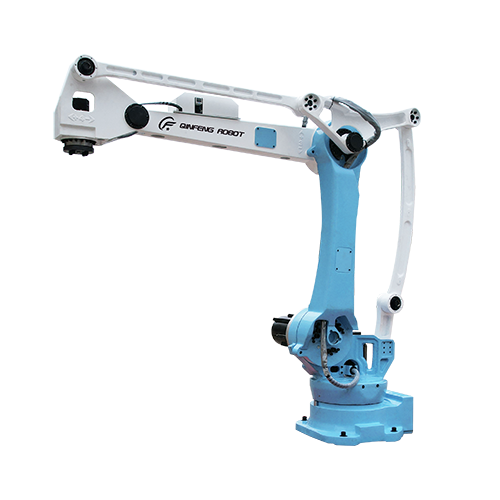

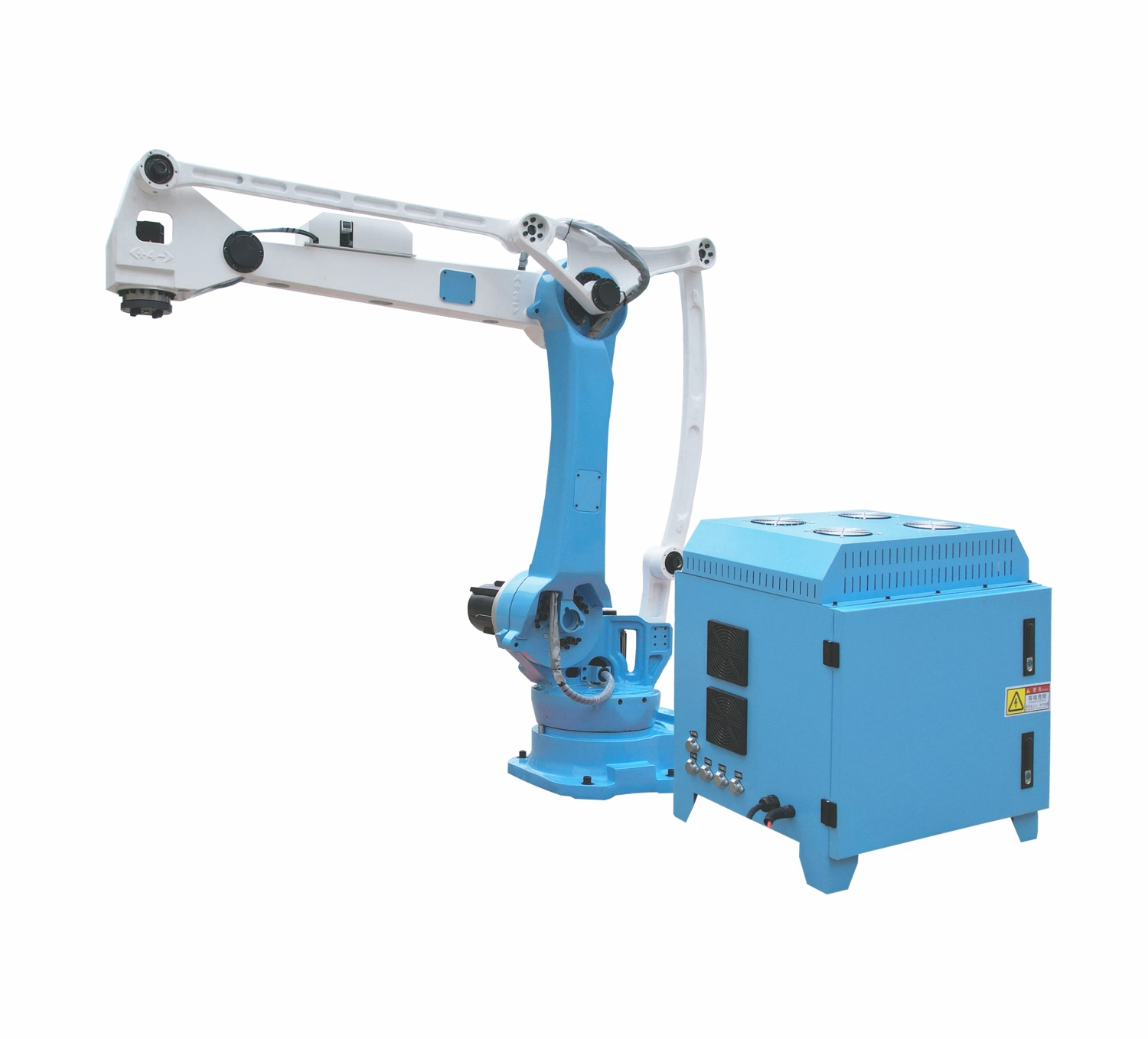

2.4M Joint stamping robot
- High-strength robotic arm structure design.
- Heavy-duty gripping capacity.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：robot.qinfeng-gp.com
| Model | QF-GJ-H-DL-2400-55-4/5 | ||
| Parameter | Unit | Index | |
| Maximum working radius | mm | 2400 | |
| Minimum working radius | mm | 700 | |
| Grip size | mm | ≤1200╳1200 | |
| Centre grip weight | kg | ≤55 | |
| Maximum SPM | pcs/min | 10 | |
| Positioning precision | mm | ±0.1 | |
| Body size (H is variable) (L*W*H) | mm | 1920╳700╳1720 | |
| Body weight | kg | ≈850 | |
Motion range (Maximum speed) | J1 | ° (°/s) | ±160 (155.4) |
J2 | ° (°/s) | -25, +75 (131.5) | |
J3 | ° (°/s) | -75, +75 (154) | |
J4 | ° (°/s) | ±300 (331.4) | |
J5 (N/A for 4 axes model) | ° (°/s) | ±180 (287.6) | |
